IMADA Digital Force Gauge DST/DSV

IMADA Digital force gauge DST/DSV series.

  • Reliable digital force gauge with less functions compared to ZTA/ZTS series but at a more cost effective price. The DSV Series features additional functions added to the standard DST Series (2 functions below).

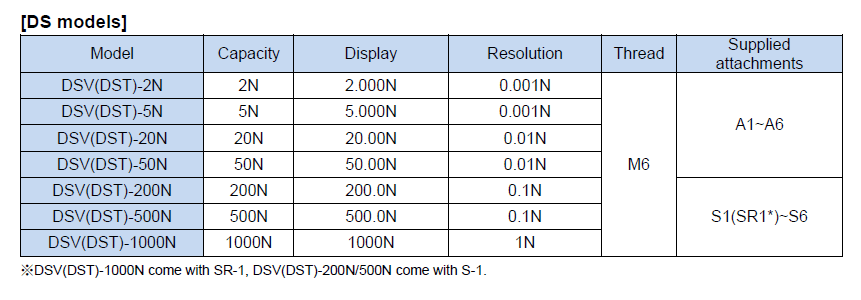

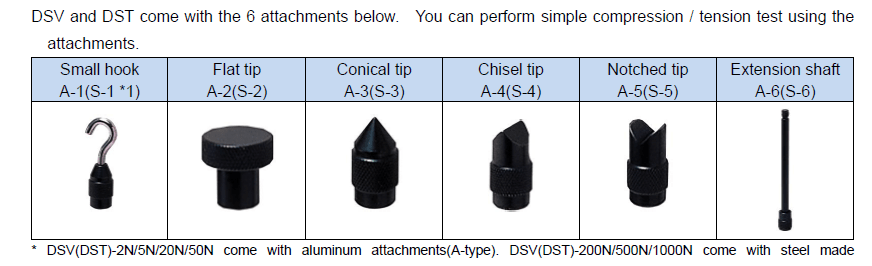

  • Range from 2N-1000N types and able to toggle to kgf units. Comes with 6 accessories to perform various pull and push functions. If the supplied attachments does not fit your sample or testing requirements, there are a range of optional accessories which can also be purchased.
  • Able to set Pass OK judgement function and features an Overload alarm to indicate when approaching rated capacity.
  • Long lasting battery(approx 30hrs) or charge from USB power supply.
  • A lightweight and compact gauge, approx 460g with hand fitting design such that it is easy to carry around.
  • Gauge comes with a factory inspection cert issued by Imada. If require Singlas calibration cert we are able to send to calibration lab at additional cost.
  • Tilt alarm to detect posture change with data record.(DSV)
  • Higher operability with internal memory able to record 1000 data and continuous peak mode. (DSV)
  • Able to mount on motorized or manual test stands as well, kindly contact our sales staff to advise a suitable model.

For more info or price, click request for a quote to drop us an email!
