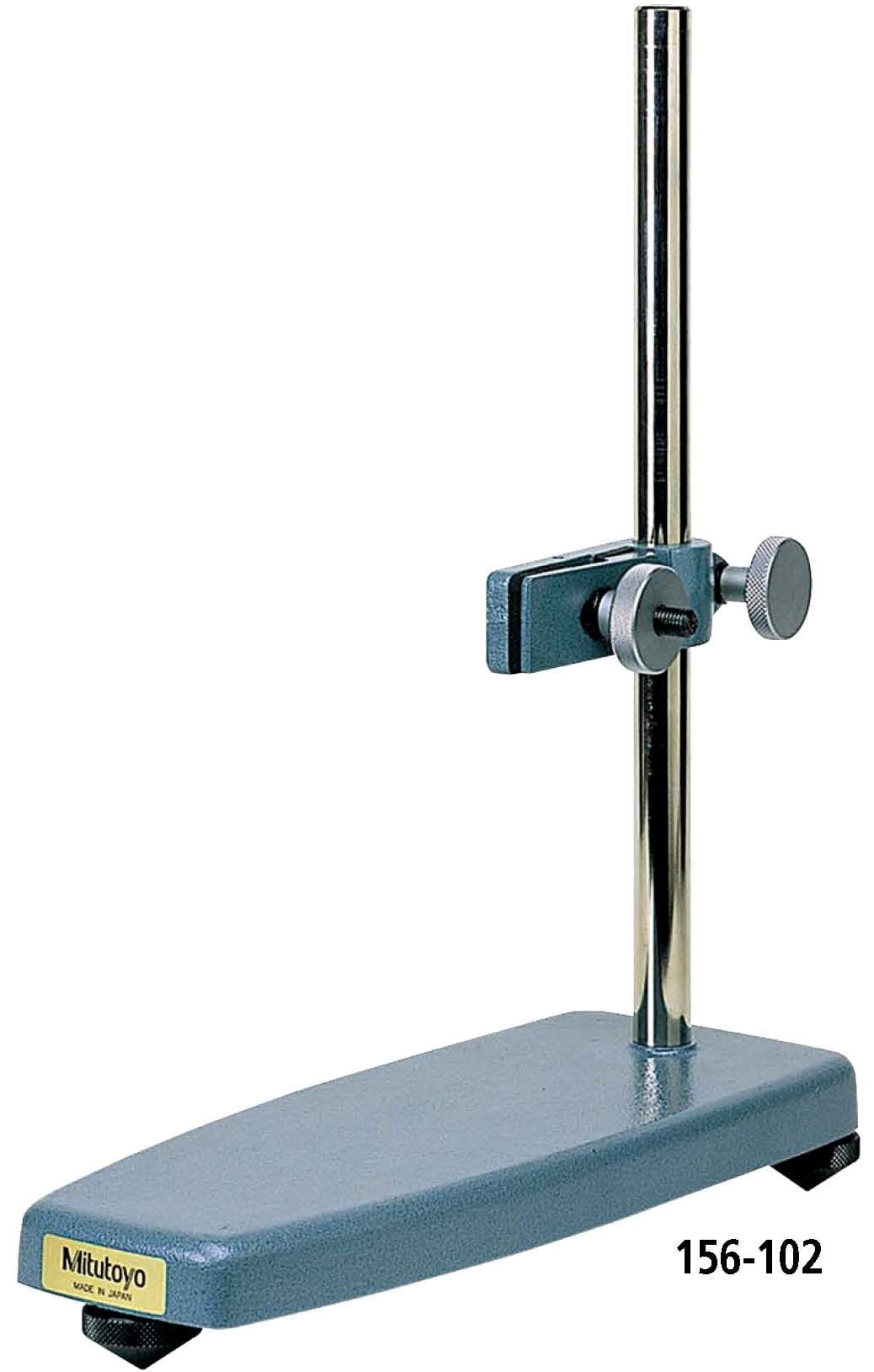

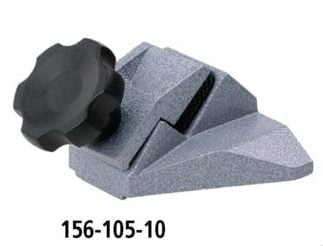

Mitutoyo Micrometer Stand 156 Series, Dedicated stand for micrometers.

Popular type:156-101-10

• Designed to allow benchtop use of hand micrometers or other gages which have frames suitable for gripping by the clamp.
• Reduces the influence of temperature changes due to body heat, enabling higher-accuracy measurement.
• This micrometer stand can be used for various handheld micrometers such as the 103/104 series

For more info or price, click request for a quote to drop us an email!

Below are some tips and you can read more on our micrometer beginners guide!

How to Use a Micrometer Stand:

1. Set Up the Stand: Firstly, position the stand on a stable work surface. Ensure it’s on a flat, level area to avoid skewed readings.

2. Mount the Micrometer: Secondly, attach the micrometer to the stand’s holder through the adjustable clamp such that the micrometer is held firmly in place. Ensure that the anvil and spindle of the micrometer are aligned horizontally for accurate readings.

3. Place the Workpiece: Next, position the object you’re measuring between the micrometer’s anvil and spindle.

4. Take the Measurement: Rotate the micrometer’s thimble or ratchet to close the micrometer onto the workpiece. Make sure you do this gently to avoid damaging both the micrometer and the workpiece.

5. Read the Measurement: Finally, once the micrometer is securely holding the object, take the measurement reading from the micrometer’s scale.

Typical Applications:

• Measuring Small Parts: In precision machining or engineering, a micrometer stand is often used to measure small parts like shafts, pistons, or other components in automotive or aerospace applications.
• Quality Control: When checking the dimensions of parts in manufacturing or assembly, using a micrometer stand helps maintain repeatability and accuracy in quality control measurements.
• Laboratories: In research and development settings, precise measurements are required, and a micrometer stand ensures that the tool remains steady and accurate during use.
