Compact Vision Measuring Machine for Easy Measurements!

Looking for an upgrade from your manual profile projector? The Mitutoyo QM-Fit Compact Vision Measuring Machine is an all-in-one optical inspection system designed for fast, accurate, and operator-friendly measurement. Built for modern production environments, QM-Fit combines vision measurement, easy touch screen, and intuitive software in a compact footprint—making it ideal for Singapore’s precision engineering, electronics, medical device, and automotive industries.

With Mitutoyo’s Automatic Element detection, procedure recording for Auto-measurement routines, and Guided instructions with Snap functions, QM-Fit enables even non-specialist operators to achieve repeatable, traceable results—perfect for shop-floor QC, first-article inspection as well as high-mix productions!

 Key Features of Mitutoyo QM-Fit:

• Accuracy guaranteed measuring range of 90x60x36mm great for inspection of workpiece parts.

• High-resolution Image Sensor 20-megapixel CMOS camera for distortion-free measurement with wide field of vision for stress free viewing.

• Long focal depth length eliminates the need to adjust focus for individual parts with varying heights.

• Automatic Element detection with Procedure recording for fast measurement of repeat jobs.

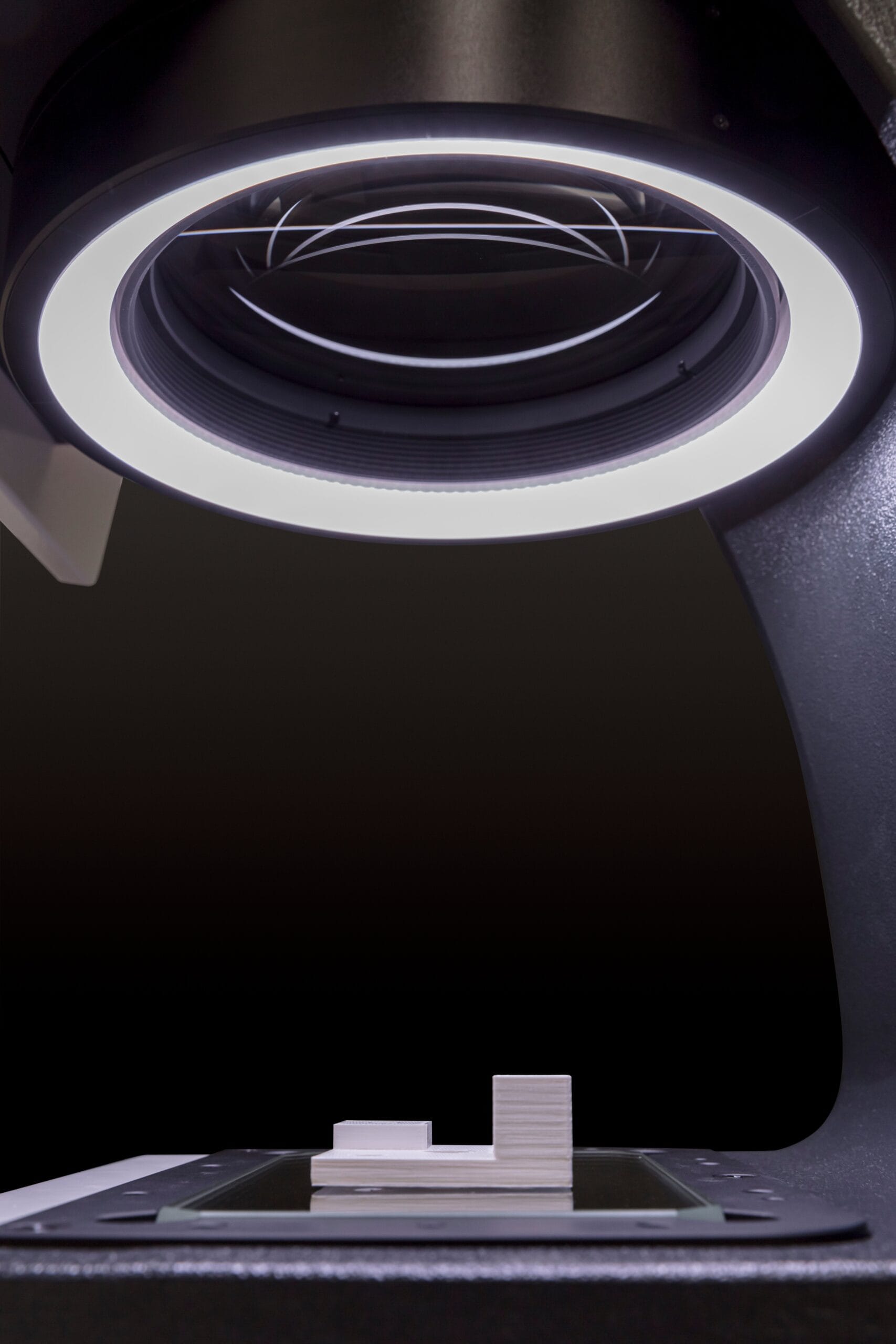

• LED surface & contour lighting for clear edge detection and check surface for scratches or dirt.

• Compact vision system at 366x407x621mm, it fits easily in production and QC areas.

Why Buy QM-Fit from Regional Tech?

•  Authorised distributor of Mitutoyo for over 40 years
•  Warranty-backed & authentic. Beware of counterfeit products!
•  After-sales support from our local technical team with installation, training, and calibration in Singapore

For more info or price, click request for a quote to drop us an email!
