Replacement Detector for Surftest SJ-210/SJ220/SJ-310 Surface Roughness Testers

Genuine Mitutoyo replacement stylus detector designed for the popular Mitutoyo SJ-210/SJ220 SJ-310 portable surface roughness testers. Built for precision surface inspection, this detector ensures accurate and repeatable roughness measurement performance.

Ideal for preventive maintenance, detector replacement, and restoring measurement reliability in Mitutoyo SJ testers.

Key Features Mitutoyo SJ Standard Detector :

• Compatible Model: SJ-220, SJ-210, SJ-310 Mitutoyo Surface Roughness Testers
• 2 Types: Comes in either standard force 178-390(4mN) or low force 178-296(0.75mN)
• High Precision Movement: Standard Stylus tip: 5 µmR / 90°, Low Force Stylus tip: 2 µmR / 60°
• Plug & play: Suitable for standard and retractable drive units.
• New SJ220 set: can refer to product page here. Also able to purchase roughness specimen or replacement drive unit.

Frequently Asked Questions:

Is the 178-390 detector compatible with the SJ-210?

Yes. The Mitutoyo 178-390 standard detector is designed specifically for the SJ-210 and SJ-310 standard portable surface roughness testers 178-561-12E as well as current SJ220 models 178-742-13.

How do I know which detector am I using?

178-561-12E and 178-742-13 would be using standard detector 178-390, while 178-561-11E and 178-741-13 will be using low force detector 178-296. If unsure, let us know the model of your SJ set.

When should the detector be replaced?

Replacement is recommended when:

• Measurements become inconsistent
• Calibration fails repeatedly

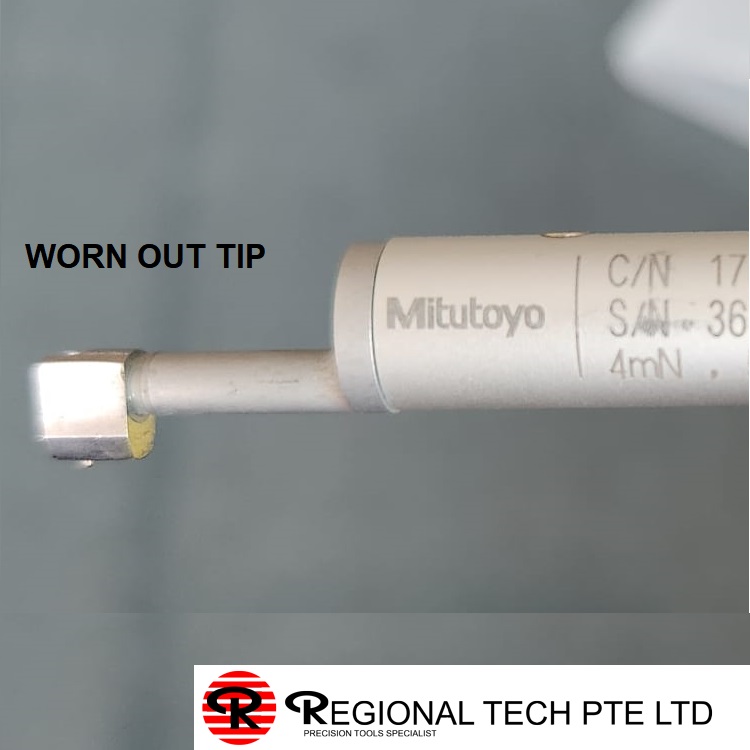

• The stylus is visibly damaged (Can see image 3)
• Surface readings drift unexpectedly
• Measurement repeatability decreases

Why Buy Mitutoyo SJ Standard Detector from Regional Tech?

• Ready Stock at CT Hub
• Free local delivery (conditions apply)
• Warranty-backed & authentic. Beware of counterfeit products!
• Optional calibration certificate(ISO/IEC 17025) available on request at additional cost
• After-sales support from our local technical team

For more info or price, click request for a quote to drop us an email!
