IMADA Digital Force Gauge DST/DSV

Imada force gauge DST is the reliable, cost effective price, made in Japan option for your testing needs. Lightweight and compact at approx 460g, it features a hand fitting design such that it is easy to carry around.

Product Overview:

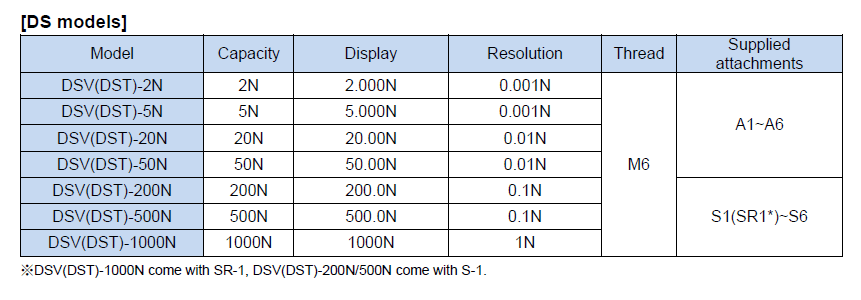

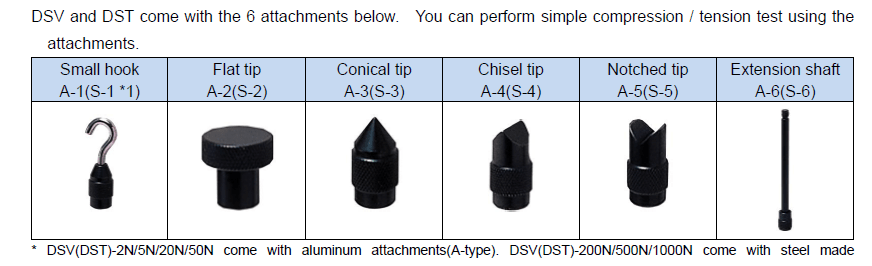

Range from 2N-1000N types and able to toggle between N/kgf/lbf units. Comes with 6 accessories to perform various pull and push functions. If the supplied attachments does not fit your sample or testing requirements, there are a range of optional accessories which can also be purchased.
Able to set Pass OK judgement function and features an Overload alarm to indicate when approaching rated capacity.
Long lasting battery(approx 30hrs) or charge from USB power supply.
Gauge comes with a factory inspection cert issued by Imada. If require Singlas calibration cert we are able to send to calibration lab at additional cost.
Tilt alarm to detect posture change with data record.(DSV)
Higher operability with internal memory able to record 1000 data and continuous peak mode. (DSV)
Able to mount on motorized or manual test stands as well, kindly contact our sales staff to advise a suitable model.

For an introduction of Force Gauges, see our article here!

Why Buy Imada force gauge DST from Regional Tech?

✅ Free local delivery (conditions apply)
✅ Warranty-backed & authentic.
✅ Optional calibration certificate(ISO/IEC 17025) available on request at additional cost
✅ After-sales support from our local technical team

For more info or price, click request for a quote to drop us an email!

Back to: Products

IMADA is a trusted worldwide brand for reliable tensile, compression and peel testing. With a reputation for Japanese engineering quality, Imada offers both digital and mechanical force gauges to meet the needs of manufacturers, testing labs, and quality control teams in Singapore. From handheld testing on the shop floor to advanced material analysis, they provide accurate, repeatable measurements that help businesses maintain product quality and meet compliance standards.
